<div id="c129746" class="csc-typography">
<ul>
<li>3600 Watt Class D power module </li>
<li>Dual 12-inch long excursion drivers; Dual 6th order band-pass design </li>
<li>15 dB SPL attenuation front-to-rear  </li>
<li>Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole </li>
<li>Four low-noise, heavy-duty casters </li>
<li>HxWxD = 24.5-inch x 15.5-inch x 33.5-inch (622 x 394 x 851 mm)</li>
<li>Net Weight: 40.1 kg (88.5 lbs)</li>
<li>6 Year Warranty when registered within 30 days of purchase</li>
</ul>
</div>
<div id="c129747" class="csc-typography">

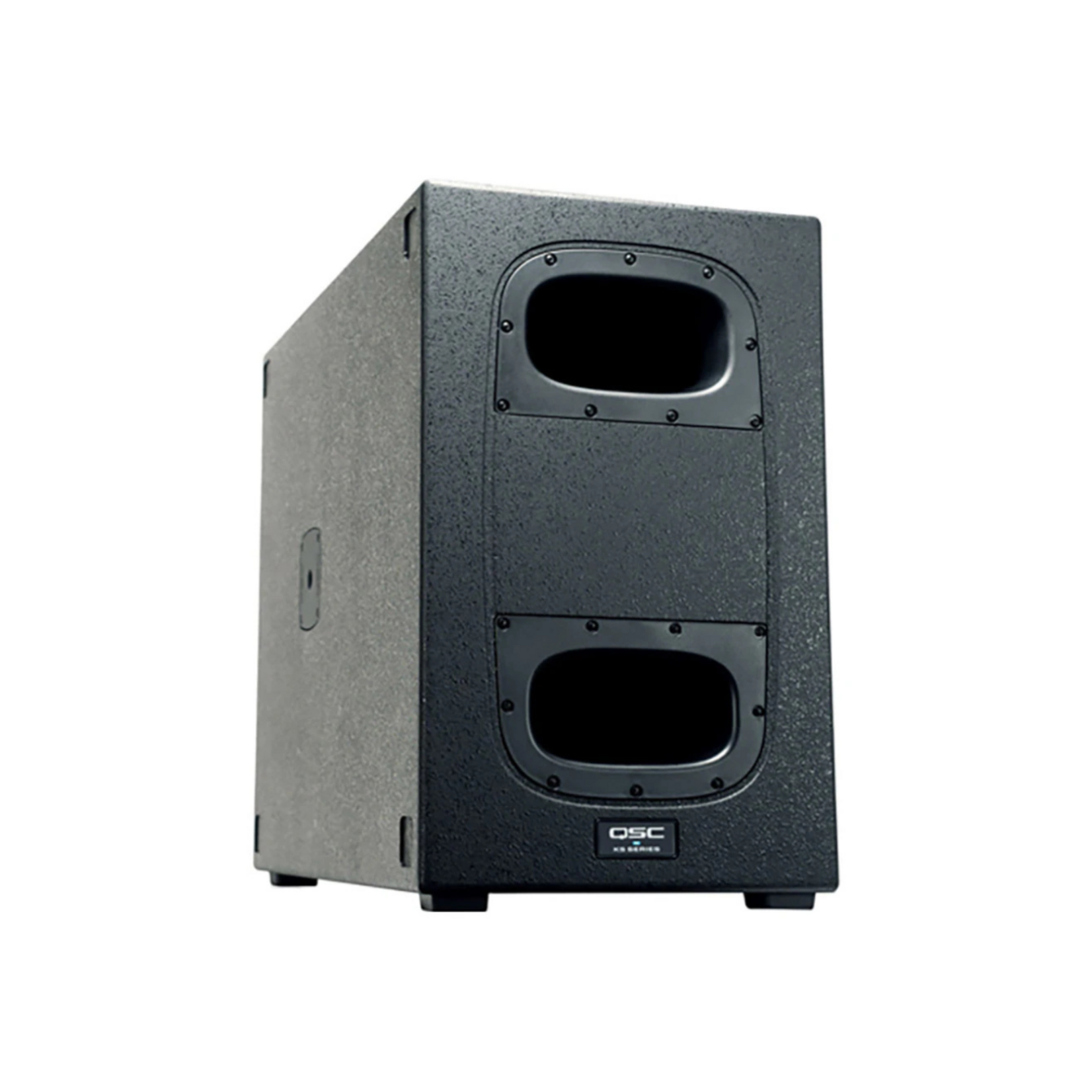

<p class="bodytext">Powered by a 3,600 Watt Class D amplifier, processed with the latest DSP technology, and featuring dual 12-inch long excursion drivers each arranged in a 6th order band pass chamber, these components all combine seamlessly to produce a staggering 15 dB more output at the front of the cabinet than at the rear. Highly portable, the cabinet features comfortable, aluminum handles and four, rear-mounted casters. Two M20 sockets accept a 35 mm loudspeaker pole in either horizontal or vertical orientation.</p>
</div>
<div class="row
csc-typography
grid-columns
padded




grid-columns--align-
grid-columns--

rel">
<div class="six-columns

col-bg-first


" data-column="">
<div class="
"> </div>
<div id="c129749" class="csc-typography">
<div class="csc-textpic csc-textpic-center csc-textpic-above csc-textpic-equalheight">
<div class="csc-textpic-imagewrap" data-csc-images="1" data-csc-cols="2">
<div class="csc-textpic-center-outer">
<div class="csc-textpic-center-inner">
<figure class="csc-textpic-image csc-textpic-last"><img src="https://www.qscaudio.com/fileadmin/_processed_/6/4/csm_KS212C_diagram10_7836f858c3.png" alt="Diagram of typical omnidirectional subwoofer energy dispersion" width="294" height="352" /></figure>
</div>
</div>
</div>
<div class="csc-textpic-text">
<p class="align-center typography-small"><strong>Standard subwoofers radiate energy around the entire enclosure,<br />leading in specific applications to undesirable LF build-up on stage<br />and unwanted energy around the sides and rear of the system</strong></p>
</div>
</div>
<div class="clear"> </div>
</div>
<div id="c129750" class="csc-typography"> </div>
</div>
<div class="six-columns
col-bg-last



" data-column="">
<div class="
"> </div>
<div id="c129748" class="csc-typography">
<div class="csc-textpic csc-textpic-center csc-textpic-above csc-textpic-equalheight">
<div class="csc-textpic-imagewrap" data-csc-images="1" data-csc-cols="2">
<div class="csc-textpic-center-outer">
<div class="csc-textpic-center-inner">
<figure class="csc-textpic-image csc-textpic-last"><img src="https://www.qscaudio.com/fileadmin/_processed_/8/6/csm_KS212C_diagram11_4bf829d851.png" alt="Diagram of cardioid subwoofer energy dispersion" width="294" height="352" /></figure>
</div>
</div>
</div>
<div class="csc-textpic-text">
<p class="align-center typography-small"><strong>The KS212C subwoofer keeps "bass in its place"<br />with a single-box cardioid array that produces an<br />amazing 15 dB more output at the front than at the rear</strong></p>
</div>
</div>
<div class="clear"> </div>
</div>
</div>
</div>
<div id="c129752" class="csc-typography">
<h2>Specifications</h2>
<div class="container-table-well">
<div class="container-table" data-pane="">
<table class="striped" cellspacing="0" cellpadding="0">
<thead>
<tr>
<th class="align-left" scope="row">Model</th>
<th class="align-left" scope="col">KS212C</th>
</tr>
</thead>
<tbody>
<tr>
<td>Configuration</td>
<td>Dual 6th-order bandpass cardioid subwoofer</td>
</tr>
<tr>
<td>LF Transducer</td>
<td>2 × 305 mm (12 in), cone</td>
</tr>
<tr>
<td>Frequency Response (-6 dB)</td>
<td>44 Hz - 104 Hz</td>
</tr>
<tr>
<td>Frequency Range (-10 dB)</td>
<td>39 Hz - 118 Hz</td>
</tr>
<tr>
<td>Nominal Coverage Angle</td>
<td>180˚ Cardioid (15dB rear rejection @ 70Hz)</td>
</tr>
<tr>
<td>Maximum Rated SPL¹</td>
<td>132dB @1m, peak</td>
</tr>
<tr>
<td>Amplifier</td>
<td>Class D<br />2 × 1800W (peak)</td>
</tr>
<tr>
<td>Cooling</td>
<td>Low-noise, variable speed fan</td>
</tr>
<tr>

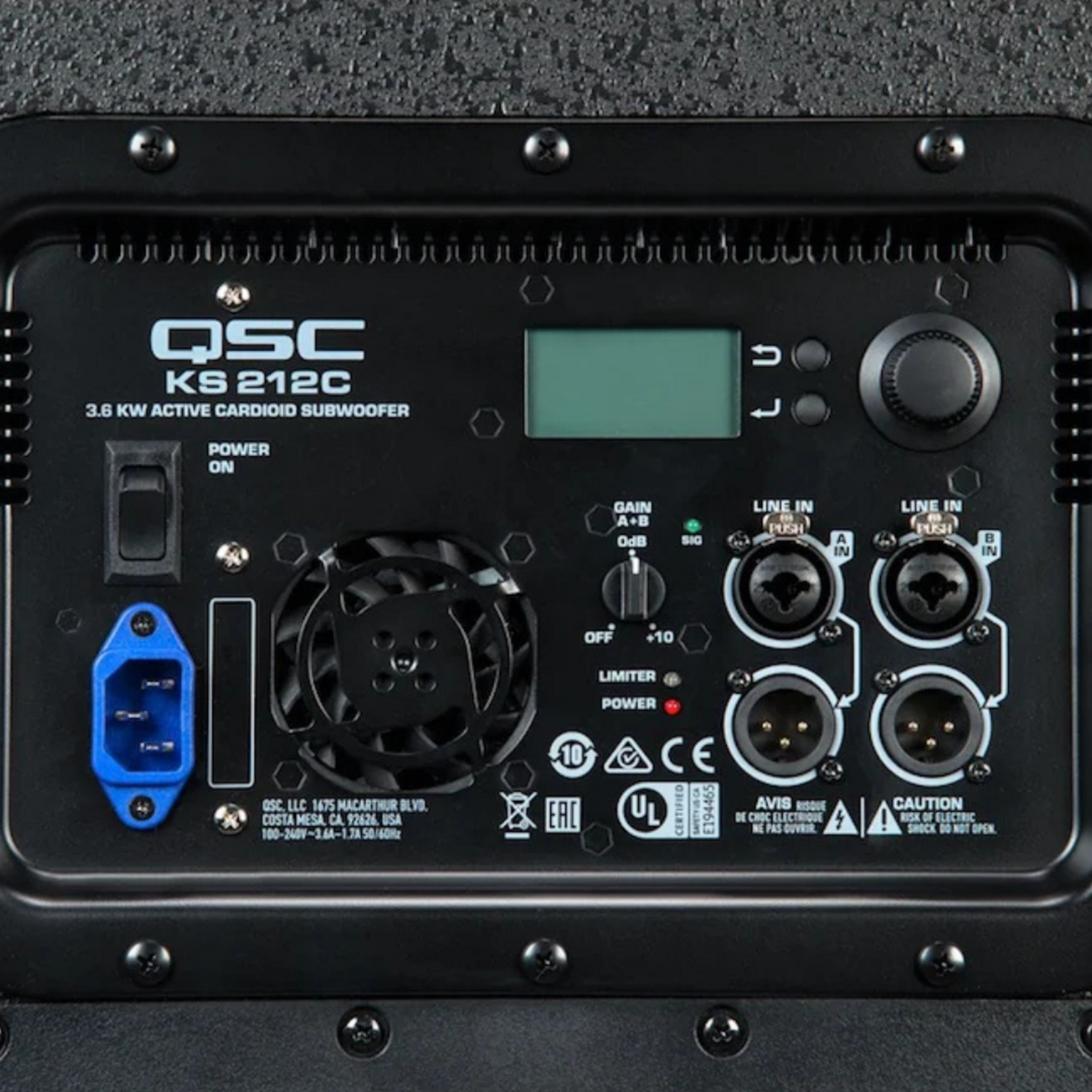

<td>Controls</td>
<td>Power<br />Gain<br />Rotary encoder<br />2 × selection buttons</td>
</tr>
<tr>
<td>Indicators</td>
<td>2 × Power LED (front and rear)<br />Input Signal LED<br />Limiter active LED</td>
</tr>
<tr>
<td>Connectors</td>
<td>2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo<br />2 × XLR/M (Loop-thru Output)<br />1 × locking IEC power connector</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
