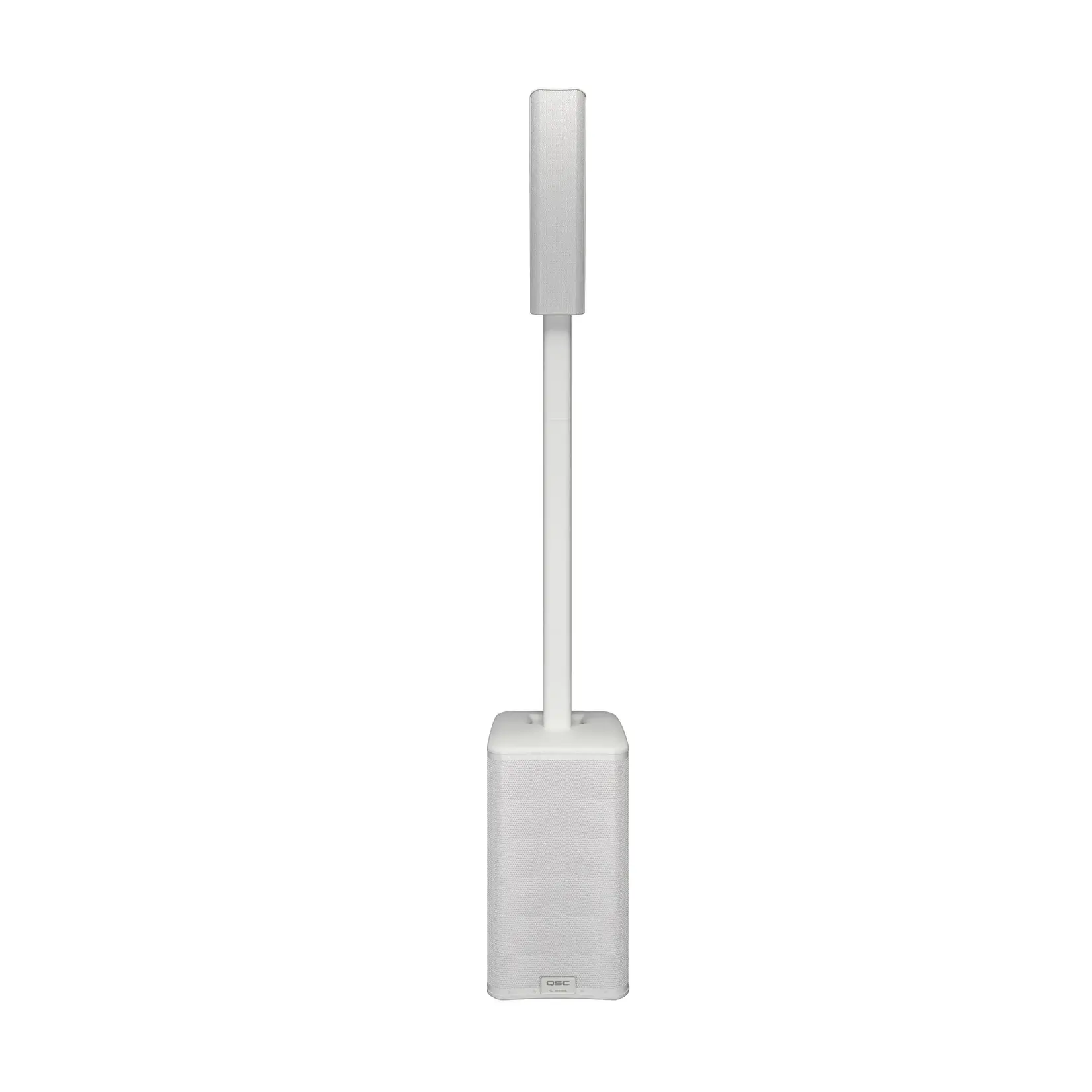

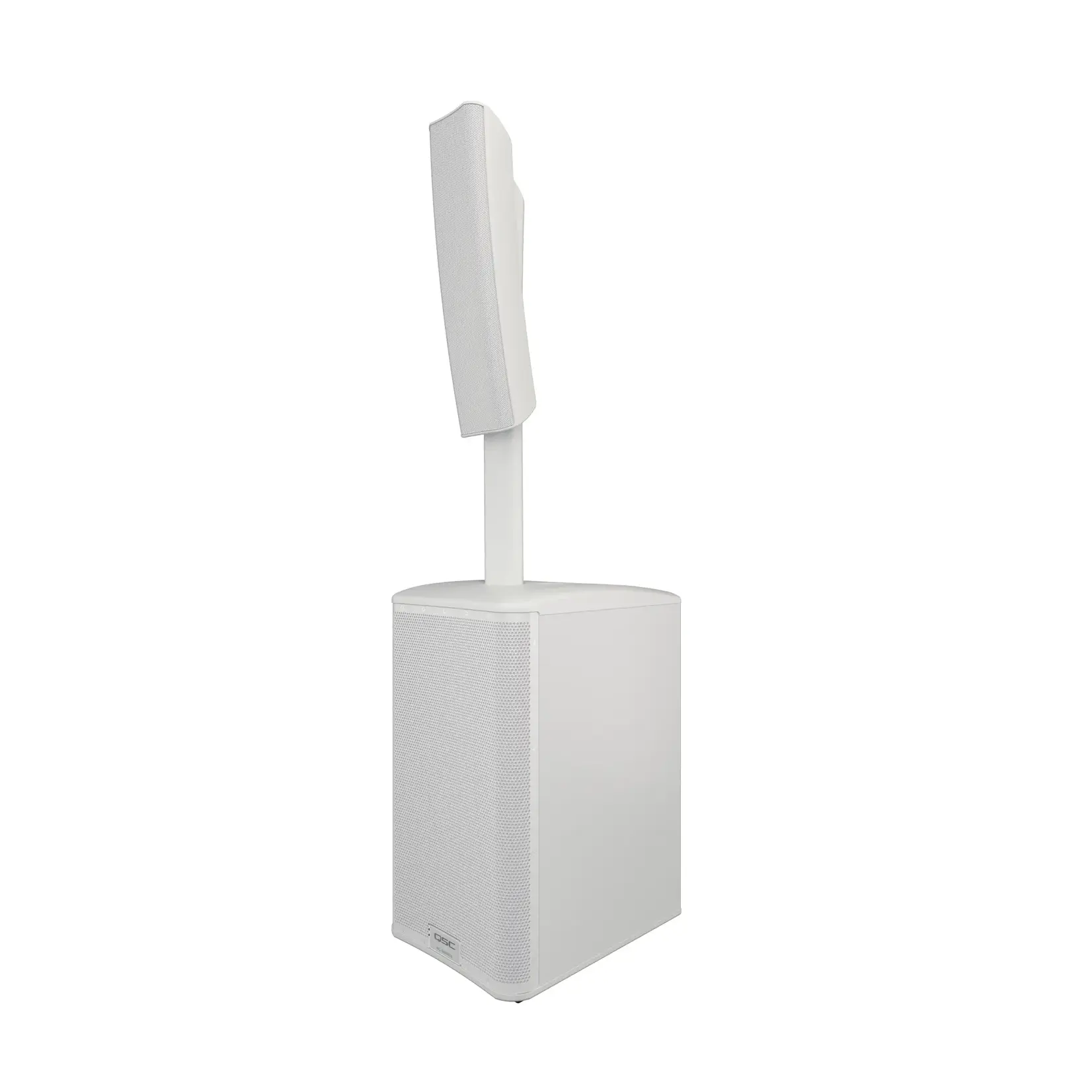

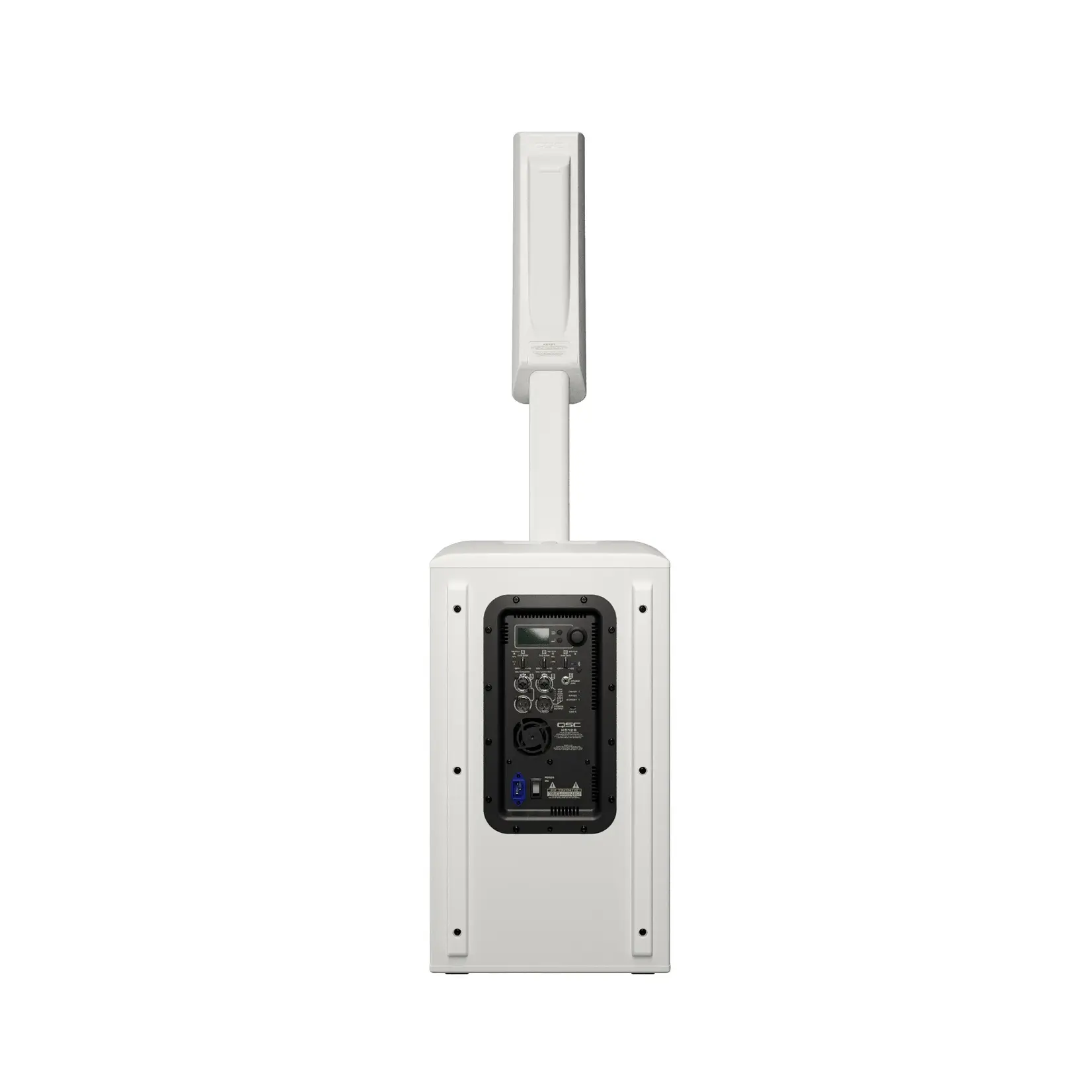

<p>Building on the legacy of the K Family, the KC12 “K Column” is a 3-way, 3000-watt loudspeaker system that combines a column aesthetic with the acoustic performance of traditional “box” systems. Easy to transport, deploy and use, it’s ideal for DJs and mobile entertainers, musicians and bands, and event production professionals.</p>
<table class="contenttable" border="0" cellspacing="0" cellpadding="0">
<thead>
<tr>
<td class="text-right"><strong>Model</strong></td>
<td><strong>KC12</strong></td>
</tr>
</thead>
<tbody>
<tr>
<td class="text-right"><strong>Configuration</strong></td>
<td>Active 3-Way Column Loudspeaker System</td>
</tr>
<tr>
<td class="text-right"><strong>LF Transducer:</strong></td>
<td>305 mm (12-inch), cone</td>
</tr>
<tr>
<td class="text-right"><strong>MF Transducer:</strong></td>
<td>2 x 102 mm (4-inch), cone</td>
</tr>
<tr>
<td class="text-right"><strong>HF Transducer:</strong></td>
<td>25.4 mm (1-inch), compression driver</td>
</tr>
<tr>
<td class="text-right"><strong>Frequency Response (-6 dB)</strong></td>
<td>45 Hz - 18.5 kHz</td>
</tr>
<tr>
<td class="text-right"><strong>Frequency Range (-10 dB)</strong></td>
<td>40 Hz - 20 kHz</td>
</tr>
<tr>
<td class="text-right"><strong>Nominal Coverage Angle:</strong></td>
<td>145° H x 35° V</td>
</tr>
<tr>
<td class="text-right"><strong>Maximum Rated SPL¹ (peak):</strong></td>
<td>132 dB @ 1 m</td>
</tr>
<tr>
<td class="text-right"><strong>Amplification (peak):</strong></td>
<td>Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)</td>
</tr>
<tr>
<td class="text-right"><strong>Cooling:</strong></td>
<td>Low noise, variable speed fan</td>
</tr>
<tr>
<td class="text-right"><strong>Controls:</strong></td>
<td>1 x Rotary encoder and<br />2 x Push buttons<br />3 x Rotary level potentiometers<br />1 x AC power switch</td>
</tr>
<tr>
<td class="text-right"><strong>Indicators:</strong></td>
<td>Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)<br />2 × Power LEDs (blue), Subwoofer front and rear<br />1 x Standby LED (yellow)<br />1 x Limiter LED (red)<br />3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)<br />Input A: Mic/Line with assignable Hi-Z selected LED<br />Input B: Mic/Line with assignable +48 V selected LED<br />Input C: Bluetooth selected LED</td>
</tr>
<tr>

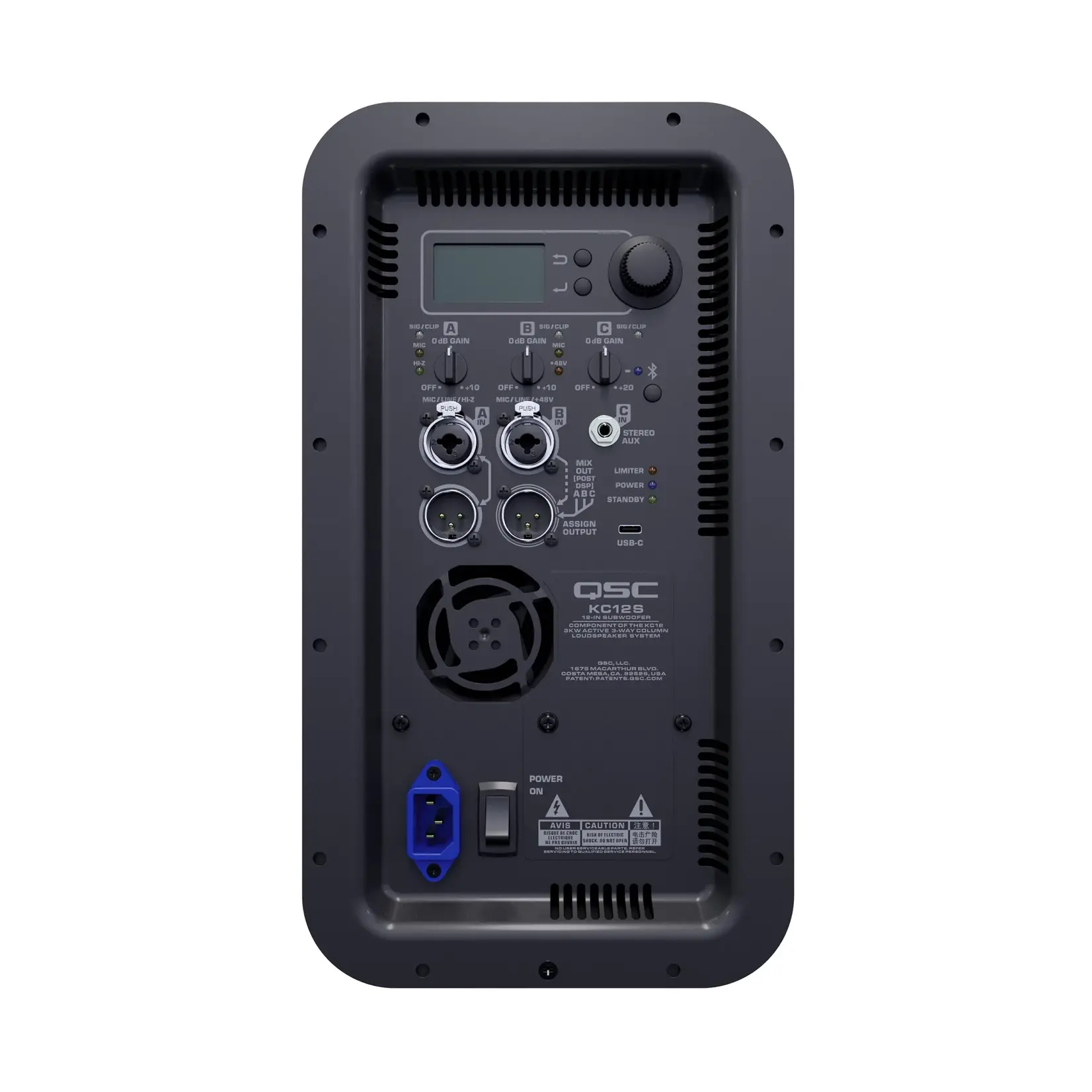

<td class="text-right"><strong>Connectors:</strong></td>
<td>2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)<br />2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)<br />1 × 3.5 mm TRS (Stereo Input)<br />1 x USB-C (Output: 5V/3A)<br />1 × locking IEC power connector</td>
</tr>
<tr>
<td class="text-right"><strong>AC Power Input:</strong></td>
<td>Universal power supply, 100-240VAC, 50/60 Hz</td>
</tr>
<tr>
<td class="text-right"><strong>AC Power Consumption²:</strong></td>
<td>100-240VAC ~ 3.7-1.8 A</td>
</tr>
<tr>
<td class="text-right"><strong>System Components:</strong></td>
<td><strong>KC12T</strong> 145° Dual 4-inch Column System Loudspeaker<br /><strong>KC-SP32</strong> 32-inch Column System Pole<br /><strong>KC12S</strong> 3kW Active12-inch Column System Subwoofer</td>
</tr>
<tr>
<td class="text-right"><strong>Enclosure Materials:</strong></td>
<td>Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum</td>
</tr>
<tr>
<td class="text-right"><strong>Color:</strong></td>
<td>Black (RAL 9011), White (RAL 9010)</td>
</tr>
<tr>
<td class="text-right"><strong>Grille:</strong></td>
<td>Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)</td>
</tr>
<tr>
<td class="text-right"><strong>System Height:</strong></td>
<td>Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)<br />Short Deployment: 1463 mm / 57.6 in (without KC-SP32)</td>
</tr>
</tbody>
</table>
