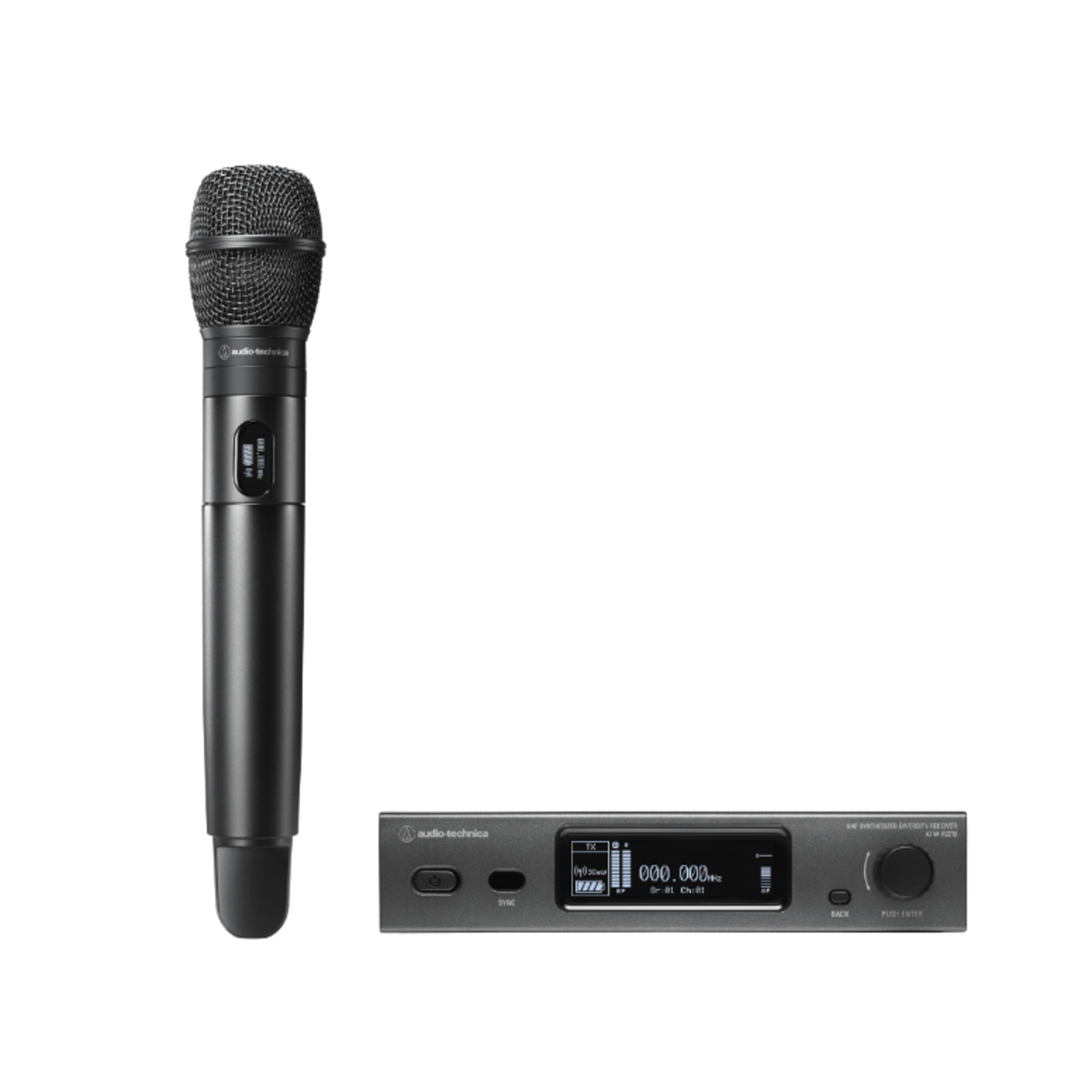

<p>ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C710 cardioid condenser microphone capsule</p>
<p>Specs:</p>
<table class="product__attributes product__table active">
<tbody>
<tr class="attributes__group-title">
<th class="attributes__group-title--text" colspan="2" scope="rowgroup">Overall System</th>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Operating Frequencies</th>
<td class="attributes__td" data-th="Operating Frequencies">Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Operating Frequencies</th>
<td class="attributes__td" data-th="Operating Frequencies">Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) </td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Minimum Frequency Step</th>
<td class="attributes__td" data-th="Minimum Frequency Step">25 kHz</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Modulation Mode</th>
<td class="attributes__td" data-th="Modulation Mode">FM</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Maximum Deviation</th>
<td class="attributes__td" data-th="Maximum Deviation">ATW-T3201: ±38 kHz (THD:10%)<br />ATW-T3202: ±36 kHz (THD:10%)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Frequency Response</th>
<td class="attributes__td" data-th="Frequency Response">ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz <i>Frequency response depends on attached microphone element</i></td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Operating Range</th>
<td class="attributes__td" data-th="Operating Range">100 m (328')<br /><i>Open range environment with no interfering signals.</i></td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Total Harmonic Distortion</th>
<td class="attributes__td" data-th="Total Harmonic Distortion">&lt;1.0% (at 1 kHz, ±17.5 kHz deviation)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Operating Temperature Range</th>
<td class="attributes__td" data-th="Operating Temperature Range">-5° C to +45° C (23° F to 113° F)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Simultaneous Use</th>
<td class="attributes__td" data-th="Simultaneous Use">40 Channels per band* <i>For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent</i></td>
</tr>
</tbody>
</table>
<table class="product__attributes">
<tbody>
<tr class="attributes__group-title">
<th class="attributes__group-title--text" colspan="2" scope="rowgroup">Handheld Transmitter</th>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">RF Power Output</th>
<td class="attributes__td" data-th="RF Power Output">High: 30 mW, Low: 10 mW (switchable), at 50 ohms</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Spurious Emissions</th>
<td class="attributes__td" data-th="Spurious Emissions">Following Federal and National Regulations</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Microphone Capsule</th>
<td class="attributes__td" data-th="Microphone Capsule">Interchangable industry standard thread</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Battery Type</th>
<td class="attributes__td" data-th="Battery Type">Two 1.5V AA, not included</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Battery Life</th>
<td class="attributes__td" data-th="Battery Life">High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) <i>Depending on battery type, usage, and environmental conditions.</i></td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Dimensions</th>
<td class="attributes__td" data-th="Dimensions">ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Net Weight</th>
<td class="attributes__td" data-th="Net Weight">ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries</td>
</tr>
</tbody>
</table>
<table class="product__attributes">
<tbody>
<tr class="attributes__group-title">
<th class="attributes__group-title--text" colspan="2" scope="rowgroup">Body Pack</th>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">RF Power Output</th>
<td class="attributes__td" data-th="RF Power Output">High: 30 mW, Low: 10 mW (switchable), at 50 ohms</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Battery Life</th>
<td class="attributes__td" data-th="Battery Life">High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) <i>Depending on battery type, usage, and environmental conditions.</i></td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Battery Type</th>
<td class="attributes__td" data-th="Battery Type">Two 1.5V AA, not included</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Dimensions</th>
<td class="attributes__td" data-th="Dimensions">64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Input Connections</th>
<td class="attributes__td" data-th="Input Connections">cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Net Weight</th>
<td class="attributes__td" data-th="Net Weight">102 g (3.6 oz), without batteries</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Spurious Emissions</th>
<td class="attributes__td" data-th="Spurious Emissions">Following Federal and National Regulations</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">High-pass (low-freq. roll-off)</th>
<td class="attributes__td" data-th="High-pass (low-freq. roll-off)">125Hz, 12dB/octave</td>
</tr>
</tbody>
</table>
<table class="product__attributes">
<tbody>
<tr class="attributes__group-title">
<th class="attributes__group-title--text" colspan="2" scope="rowgroup">Receiver</th>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Receiving System</th>
<td class="attributes__td" data-th="Receiving System">True Diversity</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Image Rejection</th>
<td class="attributes__td" data-th="Image Rejection">60 dB nominal</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">RF Sensitivity</th>
<td class="attributes__td" data-th="RF Sensitivity">20 dBuV at 60 dBA S/N ratio (50 ohms termination)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Maximum Output Level</th>
<td class="attributes__td" data-th="Maximum Output Level">XLR, balanced: +14 dBV<br />6.3 mm (1/4"), unbalanced: +8 dBV</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Antenna Input</th>
<td class="attributes__td" data-th="Antenna Input">BNC-type, 50 ohms</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Antenna Power</th>
<td class="attributes__td" data-th="Antenna Power">12 V DC, 160 mA (combined)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Power Supply</th>
<td class="attributes__td" data-th="Power Supply">100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Dimensions</th>
<td class="attributes__td" data-th="Dimensions">210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Weight</th>
<td class="attributes__td" data-th="Weight">1100 g (38.8 oz), without accessories</td>
</tr>
<tr class="attributes__tr">
<th class="attributes__th" scope="row">Accessories Included</th>
<td class="attributes__td" data-th="Accessories Included">Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters</td>
