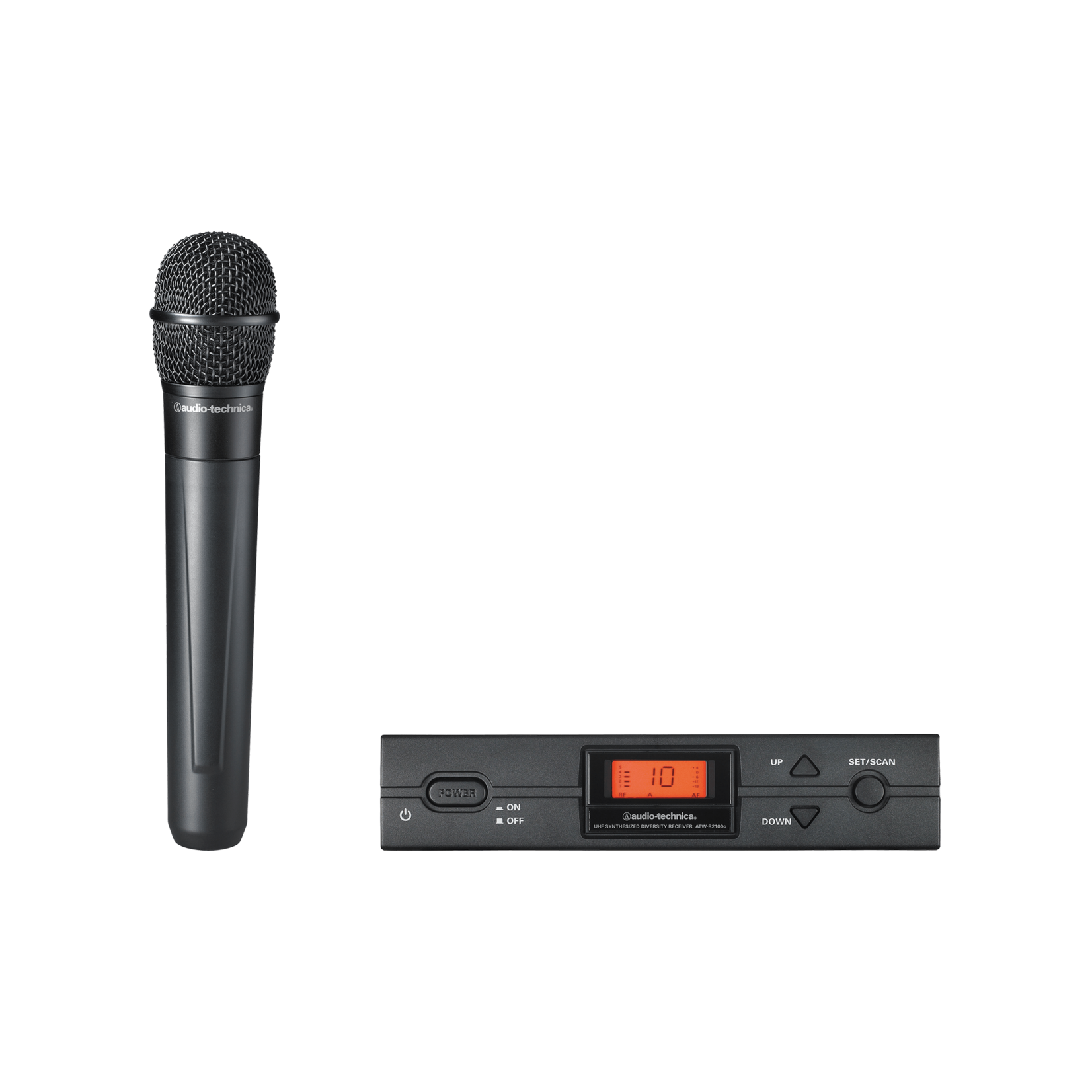

ATW-R2100c receiver and ATW-T220c handheld cardioid dynamic microphone/transmitter.
Overall System |
Operating Frequencies |
Band S : 508.125 - 526.825 MHz |
Modulation Mode |
FM |
Maximum Deviation |
±40 kHz |
Frequency Response |
100 Hz to 15 kHz (+1 dB, -3 dB) |
Operating Range |
100 m (300'), typical Open range environment with no interfering signals. |
Total Harmonic Distortion |
< 1% (at 1 kHz, ±20 kHz deviation) |
Operating Temperature Range |
5º C to 45º C 41º F to 113º F Battery and LCD performance may be reduced at very low temperatures. |
Number Of Channels |
10 total |
|
|
Handheld Transmitter |
RF Power Output |
High: 30 mW; Low: 10 mW (switchable), at 50 ohms |
Spurious Emissions |
Following federal and national regulations |
Microphone Element |
Dynamic cardioid |
Battery Type |
Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2) U.S./Canada/Latin America: 3.2 V DC, 230 mA x2 Other world areas: 3.2 V DC, 320 mA x2 |
Battery Life |
High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern. |
Dimensions |
232.0 mm (9.13") long, 48.0 mm (1.89") diameter |
Net Weight |
252 g (8.9 oz), without batteries |
Accessories Included |
AT8456a Quiet-Flex™ stand clamp |
Body Pack |
RF Power Output |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
Battery Life |
High: 7 hours (alkaline) Low: 9 hours (alkaline) Depending on battery type and use pattern. |
Battery Type |
Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included) Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2 |
Dimensions |
66.0 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H |
Input Connections |
Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V |
Net Weight |
81 g (2.9 oz), without batteries |
Spurious Emissions |
Following federal and national regulations |
Receiver |
Receiving System |
True diversity |
Image Rejection |
60 dB nominal, 55 dB minimum |
RF Sensitivity |
20 dBuV at 60 dB S/N ratio (50 ohms termination) |
Maximum Output Level |
XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV |
Antenna Input |
BNC-type, 50 ohms Bias voltage 12V DC, 60 mA, each |
Power Requirements |
12-18V DC, 500 mA |
Dimensions |
210.0 mm (8.27") W x162.2 mm (6.39") D x44.0 mm (1.73") H,br>Not including BNC connectors or feet. |
Weight |
1.0 kg (35.3 oz), without accessories |
Accessories Included |
Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters |
Audio Output Attenuator (ATTN) |
Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB |
